Drievoudig excentrisch mariene vlinderklep Hoog prestatiesysteem voor uitlaatgaszuivering van dieselmotoren

  • Triple Eccentric Marine Butterfly Valve High Performance For Diesel Engine Exhaust Gas Treatment System
  • Triple Eccentric Marine Butterfly Valve High Performance For Diesel Engine Exhaust Gas Treatment System
  • Triple Eccentric Marine Butterfly Valve High Performance For Diesel Engine Exhaust Gas Treatment System
  • Triple Eccentric Marine Butterfly Valve High Performance For Diesel Engine Exhaust Gas Treatment System
  • Triple Eccentric Marine Butterfly Valve High Performance For Diesel Engine Exhaust Gas Treatment System
Plaats van herkomst China
Merknaam FABIA
Certificering ISO9001,BV,CCS,DNV
Modelnummer 2 inch 87 inch
Document Productenbrochure PDF
Min. bestelaantal 1 set
Prijs Onderhandelbaar
Verpakking Details Kartonnen dozen/houten dozen
Levertijd 15-30 werkdagen
Betalingscondities L/C, D/A, D/P, T/T, MoneyGram, Western Union
Levering vermogen 100-1000 sets per week

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Productnaam Drievoudig excentrieke zeevlinder Toepassing van de klep Ventilatie
Materiaal van de klep Roestvrij staal Klepverbinding Flanken
Klepverrichting Pneumatische Certificering van de klep BV,DNV,CCS
Ventieldruk ≤0.25MPa Klepafdichting Roestvrij staal
Grootte van de klep 2-87 inch Kleptemperatuur 500℃
Typ van de klep Vlinder
Markeren

Triple excentrieke Marine Butterfly Valve

,

Hoogwaardige mariene vlinderklep

,

Zeevlinderklep met hoge prestaties
Laat een bericht achter
Productomschrijving

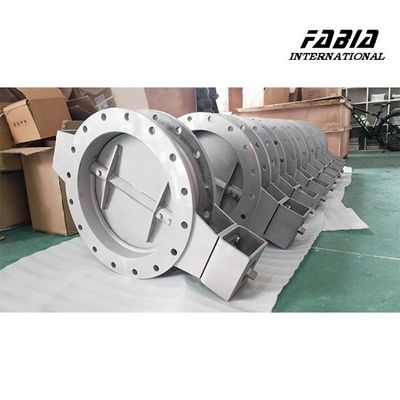

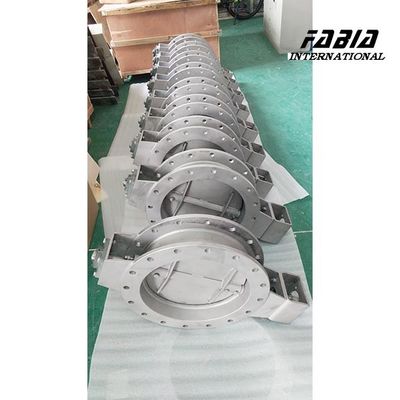

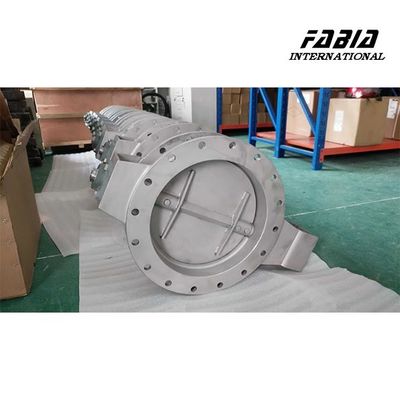

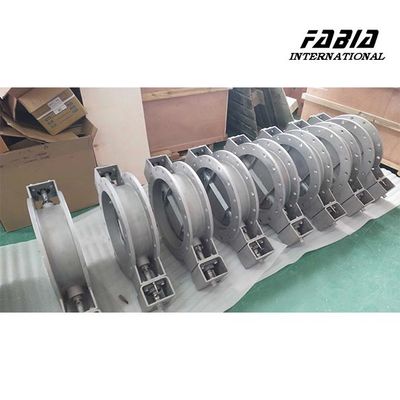

Triple eccentric marine butterfly valve High Performance For Diesel Engine Exhaust Gas Treatment System

1. Description:

In the Marine field, FB-D-73 series butterfly valves are mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen

oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.

In addition, FB-D-73 series butterfly valves have also been widely used in the road industry, such as steam desorption ads- orption pipes in VOCs and some other gas pipelines that require strict leakage rates.



2. Specification:



FABIA Valve Parameter List
Valve type: Flange type heavy-duty ventilation butterfly valve
Size: 2inch ～ 87 inch
Material:

316/316L/304/304L/ Corten
Connection type: Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: ≤0.25Mpa
Temperature: -≤500℃
Model: FB-D-73..........



3. Features:



  • three eccentric structure,wideoblique valveseat design
  • Suitable for low pressure air or other gas flow, pressure control and high temperature gas
  • Zero air leakage
  • CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
  • Strong Corrosion Resistance: Manufactured with high-quality corrosion-resistant materials, suitable for harsh operating environments.
  • Precise Control: High-precision control system ensures accurate adjustment of gas flow.
  • Excellent Sealing: Well-designed sealing structure reduces leakage rate.
  • Fast Response: Quick opening and closing enhance system response speed.
  • Simple Structure: Easy maintenance minimizes downtime.
  • High Temperature Resistance: Able to withstand high-temperature conditions reliably.



 Drievoudig excentrisch mariene vlinderklep Hoog prestatiesysteem voor uitlaatgaszuivering van dieselmotoren 0Drievoudig excentrisch mariene vlinderklep Hoog prestatiesysteem voor uitlaatgaszuivering van dieselmotoren 1Drievoudig excentrisch mariene vlinderklep Hoog prestatiesysteem voor uitlaatgaszuivering van dieselmotoren 2





















Markeringen:

Explosiebestendige pneumatische vlinderklep

Precisiecontrole vlinderklep

Emissionsreductie Marine Butterfly Valve
