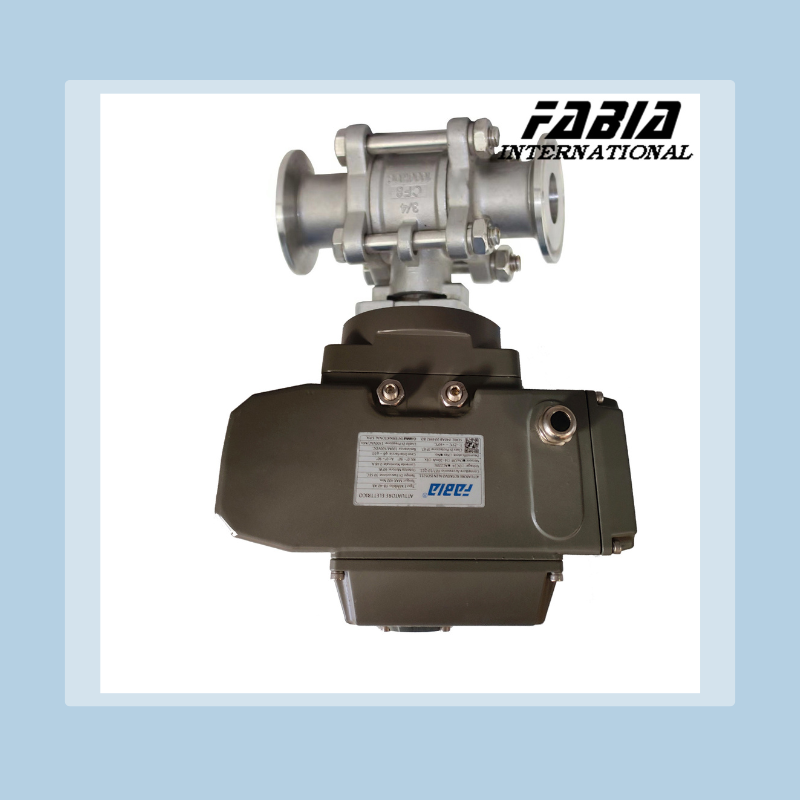

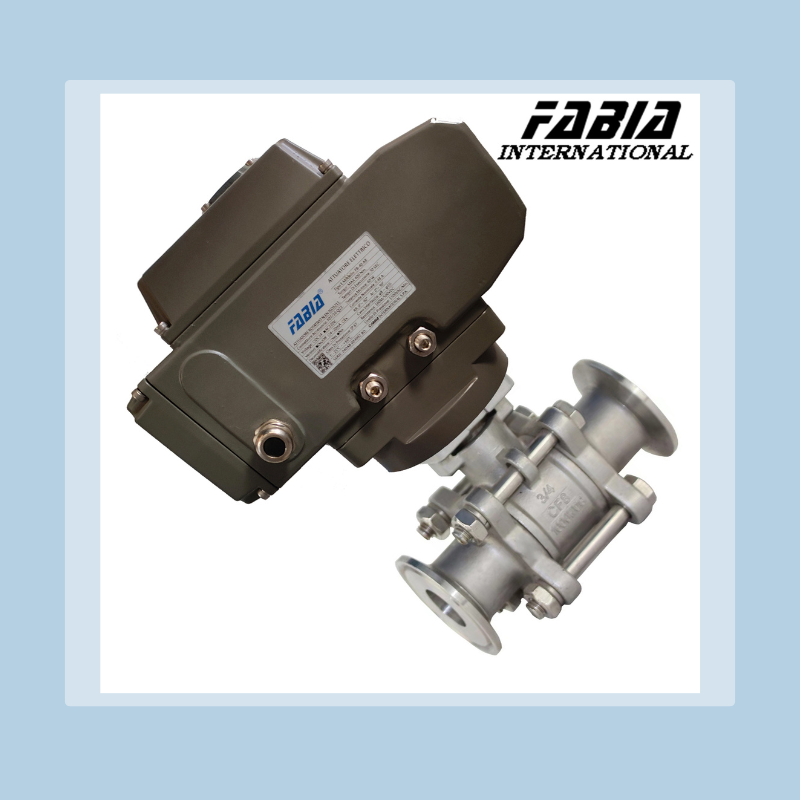

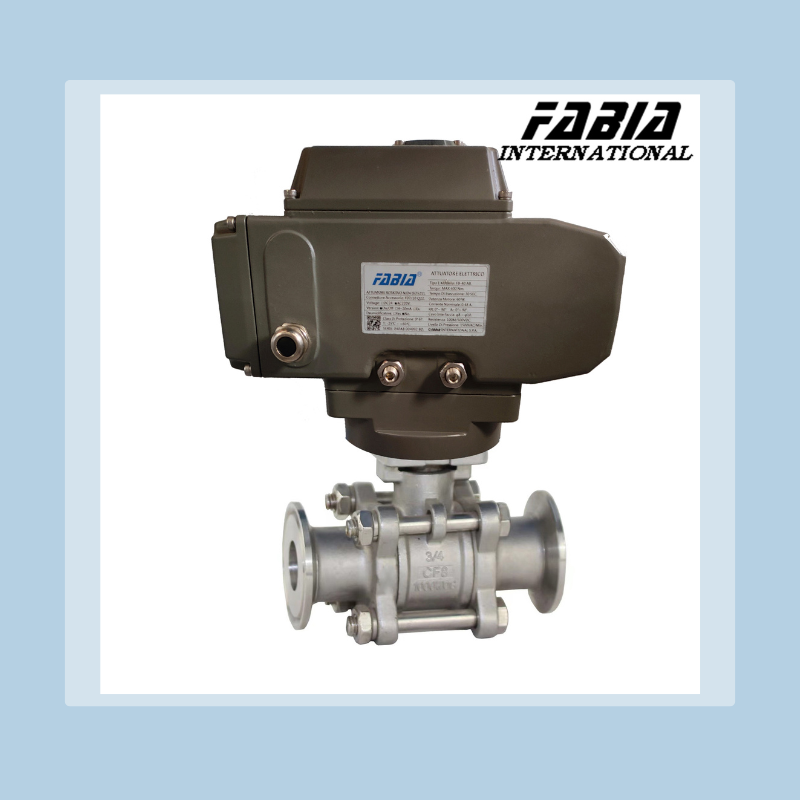

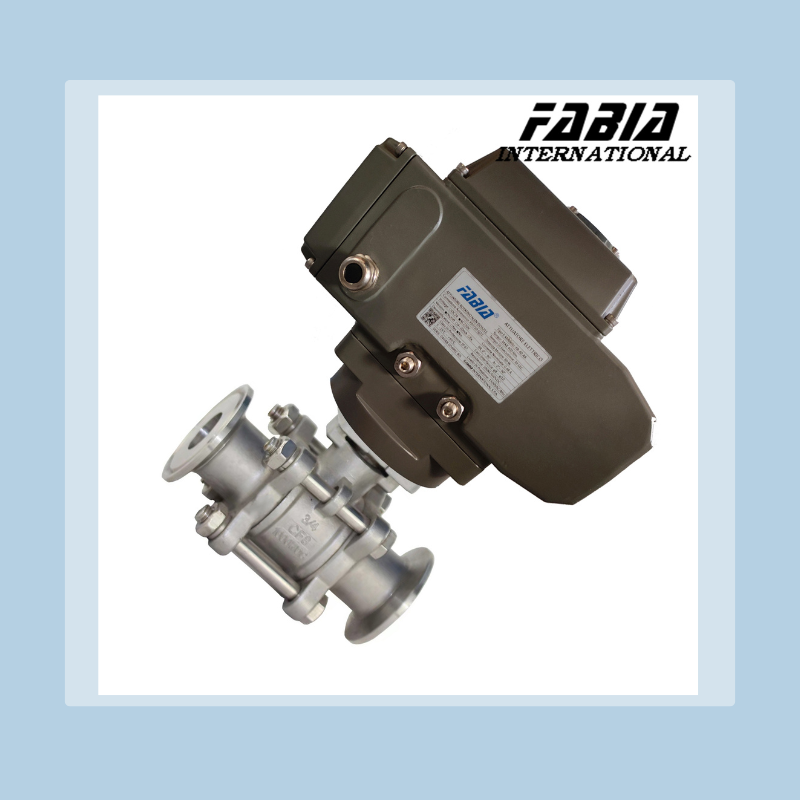

Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient

  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
Plaats van herkomst CHINA
Merknaam FABIA
Certificering ISO9001,CE,CCS,DNV
Modelnummer 1/8 inch ～ 36 inch
Document Productenbrochure PDF
Min. bestelaantal 1 set
Prijs Onderhandelbaar
Verpakking Details Dozen/houten koffers
Levertijd 15-30 werkdagen
Betalingscondities L/C, D/A, D/P, T/T, MoneyGram, Western Union
Levering vermogen 100-1000 set per week

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Productnaam Elektrische drie-delige kogelklep met hoge druk Kleptype Hoge drukKogelklep
Klepmateriaal Roestvrij staal Klepbewerking Elektrisch
Klepaansluiting Schroefdrend Klepontwerp 3 stukken
Klepdruk 1000 psi Ventildruk Klasse 150
Klepafdichting Metalen afdichting Klepmaat 1/2-8
Kleptemperatuur 260°F Kleptoepassing Petroleum, chemische, kracht, enz
Laat een bericht achter
Productomschrijving

Electric High Pressure Three-Piece Ball Valve With Internal Teeth Precise


1. Description:


Electric high pressure three piece internal thread ball valve ball core channel can be pipe line through the ball.


Overall smooth, simple structure, good sealing performance.


Especially suitable for applications requiring zero leakage rate.


2. Specification:


FABIA Valve Parameter List
Valve type: Electric High Pressure Three-Piece Ball Valve With Internal Teeth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........


3. Features:


  • Electric three-piece screw ball valve is small in size, and the electric three-piece ball valve is composed of three parts of the valve shell, which is formed by four longer bolts clamping the middle valve body and the valve ball from both ends.
  • Advantage is that the maintenance disassembly does not need to remove the pipe thread, and directly disassemble the four bolts, and the middle part of the valve body can be removed.
  • Working principle is also through the 90 degree rotation of the pneumatic actuator to drive the rotation of the sphere to achieve the flow and block of the medium.



Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 0


Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 1
