Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve

  • Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve
  • Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve
  • Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve
  • Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve
  • Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve
Plaats van herkomst CHINA
Merknaam FABIA
Certificering ISO9001,CE,CCS,DNV
Modelnummer 1/8 inch ～ 36 inch
Document Productenbrochure PDF
Min. bestelaantal 1 set
Prijs Onderhandelbaar
Verpakking Details Dozen/houten koffers
Levertijd 15-30 werkdagen
Betalingscondities L/C, D/A, D/P, T/T, MoneyGram, Western Union
Levering vermogen 100-1000 set per week

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Productnaam Elektrische kogelklep met hoge druk Kleptype Hoge drukKogelklep
Materiaal Koolstofstaal Werking Elektrisch
Actuator Elektrisch Verbinding Contactdooslas
Drukbereik 150-2500 PSI Stoelen PTFE, PEEK
Maat 1/2-8 inch Temperatuurbereik 0-400°F
Stroomkenmerken Lineair, gelijk percentage
Laat een bericht achter
Productomschrijving

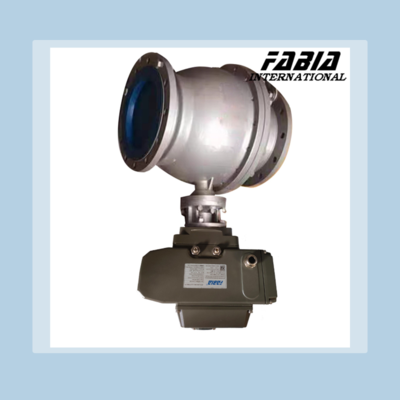

Electric High Pressure Two-Piece Butt Welding Industry Ball Valve Wide caliber


1. Description:


Electric high-pressure two-piece butt welding ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used for fluid regulation and control, in which the hard sealed V-shaped ball valve has a strong shear force between its V-shaped core and the metal seat of surfacing cemented carbide, especially suitable for media containing fiber and small solid particles.


2. Specification:


FABIA Valve Parameter List
Valve type: Electric High Pressure Two-Piece Butt Welding Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........


3. Features:


  • Main characteristics of high-pressure butt welding ball valve are compact structure.
  • Reliable sealing, simple structure, convenient maintenance, sealing surface .
  • Spherical surface are often in a closed state, not easy to be washed by the medium, easy to operate and maintain.
  • Suitable for water, solvent, acid and natural gas and other general working media, but also suitable for poor working conditions of the medium.
  • Such as oxygen, hydrogen peroxide, methane and ethylene, etc.
  • Widely used in various industries.



Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve 0

Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve 1
