Pneumatic Butterfly Valve For Air Valve Water Oil Gas

  • Pneumatic Butterfly Valve For Air Valve Water Oil Gas
Plaats van herkomst CHINA
Merknaam FABIA
Certificering FM,AMCA,ISO9001,CE,CCS,DNV
Modelnummer 1 inch 40 inch
Document Productenbrochure PDF
Min. bestelaantal 1 set
Prijs Onderhandelbaar
Verpakking Details Dozen/houten koffers
Levertijd 15-30 werkdagen
Betalingscondities L/C, D/A, D/P, T/T, MoneyGram, Western Union
Levering vermogen 100-1000 set per week

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Productnaam Ronde vlinderdemper Klepaansluiting Flens
Materiaal roestvrij staal Kleplichaam roestvrij staal
ControlMode Hand/Pneumatisch/Elektrisch Ontwerpdruk ±6000Pa
Leckage 56 l/s/m3 ((2000Pa) Toepassen halfgeleiders, LCD-panelen, biofarmaceutische producten
Laat een bericht achter
Productomschrijving

Pneumatic Butterfly  Valve

Water  Oil  Gas

1. Description:


The product is mainly used in industries such as semiconductors, LCD panels, and biopharmaceuticals for ventilation and exhaust system air volume control valves.Divided into micro, medium, and large sizes based on the size .


2. Specification:


Round butterfly(Micro Size)

Product No. Size Height Outer size D(shaft) Control Model
FB-RBD-0020-01 20 25 105 D12 Electric/Pneumatic
FB-RBD-0025-02 25 25 115 D12
FB-RBD-0032-03 32 25 135 D12
FB-RBD-0040-04 40 25 145 D12
FB-RBD-0050-05 50 30 160 D12
FB-RBD-0063-06 63 30 180 D12
FB-RBD-0080-07 80 30 195 D12
FB-RBD-0100-08 100 30 215 D12
FB-RBD-FREE FREE


Round butterfly(Medium Size)

Product No. Size Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
VB-RBD-0100-01 D100 150 1.2 1.5 D12 Electric/Pneumatic
VB-RBD-0100-02 D150 150 1.2 1.5 D12
VB-RBD-0100-03 D200 200 1.2 1.5 D12
VB-RBD-0100-04 D250 250 1.2 2.0 D12
VB-RBD-0100-05 D300 250 1.2 2.0 D12
VB-RBD-0100-06 D350 250 2.0 2.5 D25
VB-RBD-0100-07 D400 250 2.0 2.5 D25
VB-RBD-0100-08 D450 250 2.0 2.5 D25
VB-RBD-0100-09 D500 250 2.0 3.0 D25
VB-RBD-0100-10 D550 250 2.0 3.0 D25
VB-RBD-0100-11 D600 250 2.0 3.0 D25
VB-RBD-FREE FREE


3. Features:


  • Type:micro, medium, and large size
  • Design Pressure:±6000Pa
  • Leakage:56L/s/m³(2000Pa)
  • Beautiful, low noise, and low resistance l

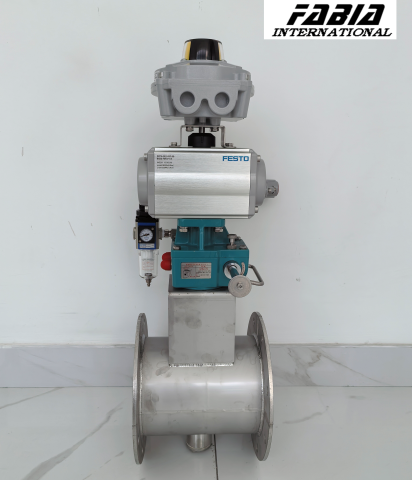

Pneumatic Butterfly Valve For Air Valve Water Oil Gas 0

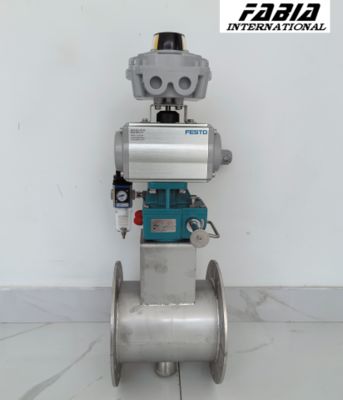

Pneumatic Butterfly Valve For Air Valve Water Oil Gas 1
